|Nominal Voltage:||288 Voltage||Material:||NIMH Battery|
|Cycle Life:||≥1000cycles||Color:||Optional Subject To Requirement Of Client|
|Warranty:||36 Month, Unlimited Mileage||Application:||Automative Car Battery|

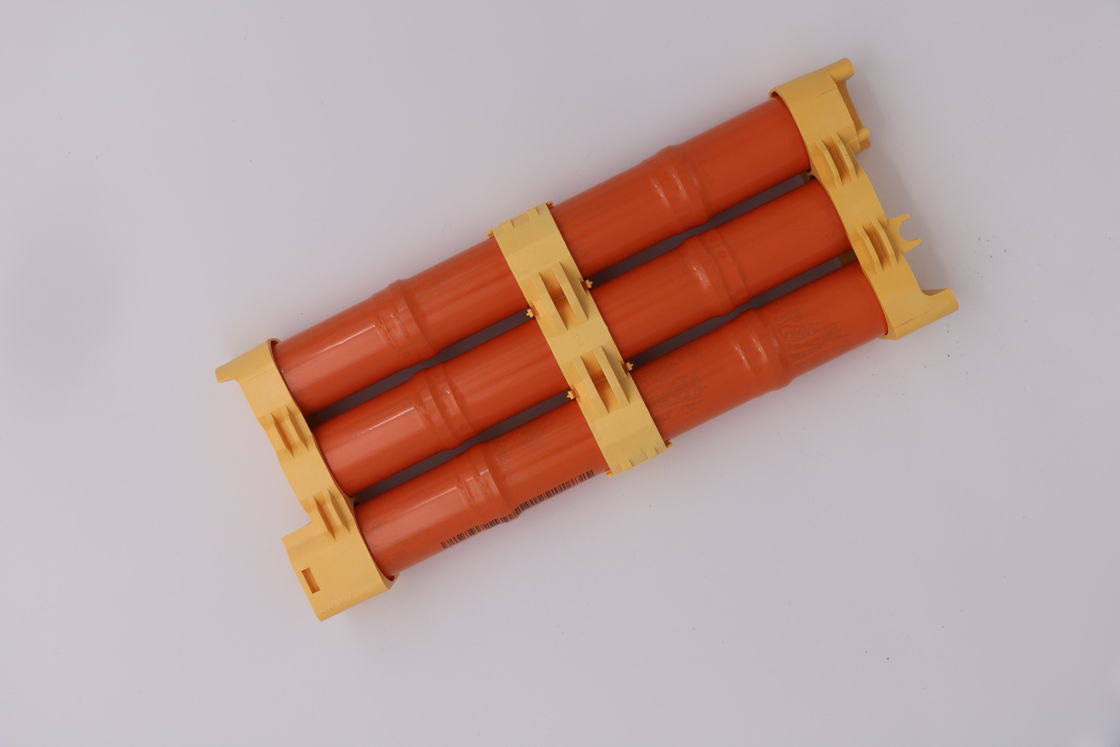

lexus rx400h hybrid battery,
electric car battery pack
The length of time your hybrid battery will last is clearly dependent on several factors. While Toyota states an 8 years lifespan we typically see lifespans of 5 – 10 years depending on these factors. Should you wish to maximise the lifespan of your hybrid battery there are some simple things you can do. Regular servicing and maintenance will ensure the petrol engine is not under-performing and putting undue strain on the hybrid battery. A preventative recondition and rebalancing of your hybrid battery would ensure the optimal performance of your hybrid battery. This may be inconvenient for current owners but those looking to purchase a second-hand model could easily factor it into the purchase price
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
|Dimension||Length (mm) × Width (mm) × Height (mm)||786×292×109|
|Approximate Weight (kg)||43|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||288|
|Peak Discharge (30C discharge for 10S)||Voltage ≥ 192V|
|Peak Charge (15C charge for 10S)||Voltage ≤ 400V|
|Continuous Discharge (15C discharge for 60S)||Voltage ≥ 216V|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-40℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
