|Battery Pack Voltage:||158.4 Volt||Single Module Voltage:||14.4V|
|Material:||NIMH Battery||Number Of Single Modules:||11 Sets|
|Cycle Life:||≥1000cycles||Battery Condition:||Brand New|
honda fit car battery,
honda fit battery replacement
There are two more reasons for the longer lifespan of these hybrid batteries: Battery life gets extended when it does not get overheated. The auxiliary fan system keeps the hybrid batteries cool. The fan pulls fresh air in and circulates it efficiently to keep the battery temperature down. Hybrid cars are equipped with a function that prevents the battery from drawing energy when the charge hits 80% of its full capacity. The same feature will show that the battery is empty when the charge goes down to almost 20%. It is an approximate estimation because the automakers don’t reveal the exact figures. So, the automakers ensure a long life for the hybrid batteries by under-using their energy.

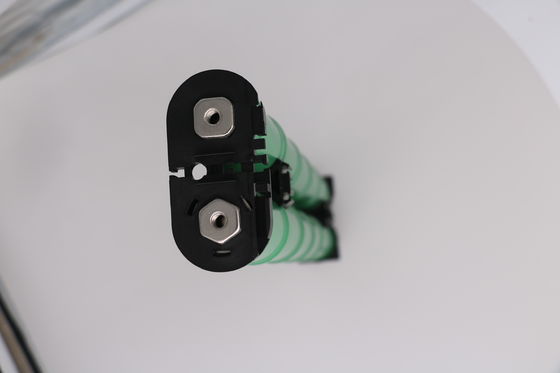

The whole battery pack consisted by 11 set of above modules
|Dimension||Length (mm) × Width (mm) × Height (mm)||290 x 294 x 110|
|Approximate Weight (kg)||30|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||158.4|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-20℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
