Hyno Energy Nimh Hybrid Battery / Toyota 3rd Gen 2010 Prius Battery Pack

Name: Hyno Energy Nimh Hybrid Battery / Toyota 3rd Gen 2010 Prius Battery Pack
Brand: Hyno
SKU: Hyno Camry 245.2
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (188 reviews)

Hyno Energy Nimh Hybrid Battery / Toyota 3rd Gen 2010 Prius Battery Pack supplier

Large Image : Hyno Energy Nimh Hybrid Battery / Toyota 3rd Gen 2010 Prius Battery Pack

Product Details:

Place of Origin:	China
Brand Name:	Hyno
Certification:	ISO/TS16949:2009, ISO9001:2008
Model Number:	Hyno Camry 245.2

Payment & Shipping Terms:

Minimum Order Quantity:	1 pack
Price:	To be discussed
Packaging Details:	Standard packing, paper box, wooden box
Delivery Time:	To be discussed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 packs/month

Contact Now

Detailed Product Description

Nominal Voltage:	201.6V	Chemistry Of Battery:	NiMH
Cycle Life:	≥1000cycles	Appearance:	Customized Color
Transportation:	Options As Per Commercial Terms	Application:	Automative Car Battery-Camry 6th Gen.
High Light:	lexus ct200h hybrid battery , 2011 lexus rx450h battery

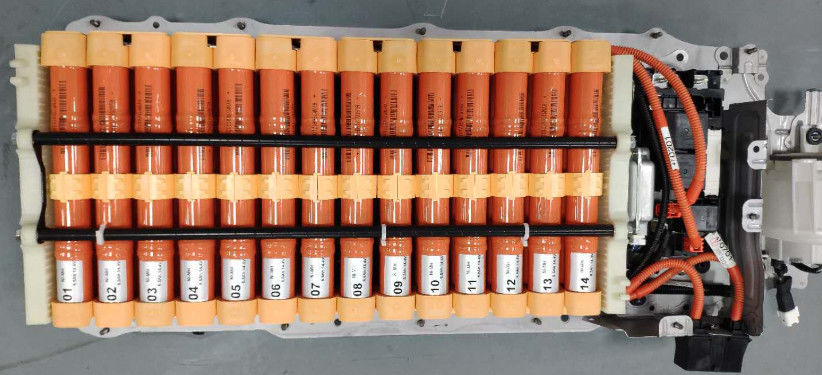

Hyno Energy. OEM Battery Replacement For Toyota Prius 3rd Gen. (2010-2015). 6500mAh 201.6V, Guaranteed Performance

General Cautions:

When the battery is out of use, please make sure the switch is off, otherwise, it may cause leakage. When the battery is not used for a long time, make sure the battery is open circuit that the positive and negative poles are completely disconnected from other devices. When the battery with the charging device is in storage, ensure that the static current of the charging device is very small (recommended less than 5μA), prevent the loop of the battery and the charging device. The battery been over discharged for a long time shall result in liquid leakage, disable to charge, and it is difficult to restore the performance. Battery mixing is strictly prohibited neither with different charged states for the similar batteries nor for a dry cell, other battery of different sizes, or brands.

Technical Specification

Item		Specification
Dimension	Length (mm) × Width (mm) × Height (mm)	550 x 294 x 110
Approximate Weight (kg)		30
Typical Capacity(mAh)		6500
Minimum Capacity (mAh)		6000
Nominal Voltage (V)		201.6
High Temperature Performance ( 55℃ 1C discharge rate)		≥90%
Low Temperature Performance (-20℃ 1C discharge rate)		≥85%
Charge Retention Performance (28days charge retention rate)		≥80%
Working Temperature Range		-20℃ to +55℃
Cycle Life (C/2 charge, 1C discharge)		≥1000cycles

Cautions of Battery Pack Transportation and Storage

Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
Interval: 30 minutes
Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
Interval: 1hours
Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
Interval: 30 minutes
Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

Please operate according to assembly manual during the installation of Prius battery pack.
Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
Don’t twist and bend battery modules and accessories when assembling battery pack.
Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.

Use Cautions of battery pack

Ensure the normal operation of car management system during the use process, and forbid over- charge and over-discharge to battery.
As storage battery is charged by gasoline engine, so external power supply charge is not needed. However, if the vehicle parks for a long time, the electricity of high power storage battery will run out. Therefore, be sure to drive the car for at least 30minutes or 16Km every several months.
If there is leaked liquid, don’t touch the spilled liquid, because this may be the alkaline electrolyte that hybrid battery leaks. If skin and eyes contact to this liquid, please flush with plenty of water at once, or if possible, wash with boric acid solution and see the doctor at once.

Quality warranty

The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
The battery is not within the warranty range in the following situation:

The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
The battery damage caused by the out of control of BMS.
