Hybrid 2002 Honda Civic Battery Replacement Long Life Circle 20 Sets

Hyno Energy. Hybrid Battery Replacement For Honda Civic (1998-2005). 6500mAh 144V, Long Life Circle

Initial reports from automakers stated that most of these batteries were surviving well past the warranty period. Honda initially reported that battery failure rates outside of the warranty period were around 0.002 percent for all of its cars. Toyota stated that about 1 percent of first generation Prius batteries failed out of warranty. That failure rate dropped to around 0.003 percent for second-generation hybrids. Consumer Reports conducted owner surveys that counted all battery replacements and found that first and second year Prius models had around a 5-percent replacement rate, which dropped closer to 0.1 percent during the end of the run for the second-generation Prius.

Hunan Hi-soon Supply Chain Co., Ltd, is your best supplier of energy storage products with patent technology and guaranteed performance.
Hi-Soon dedicated in the new energy industry and provides the end users with a world-wide energy solution . The Company has been dedicated to hybrid power for 20 years and established a full-industry chain from advanced energy storage materials, advanced battery, automobile battery energy pack, to hybrid automobile assembly system, battery recycling system and hybrid automobile operations to serve the vehicle manufactures and end users. Hybrid car Nimh battery as one of our major product have been served more than 100,000 hybrid passenger vehicles across the continents
In addition to sustainable social change, we believe passionately in customer service, giving our employees proper training and knowledge, and making the highest quality products. We are 100% positive we are making the world a better place.

Technical Specification

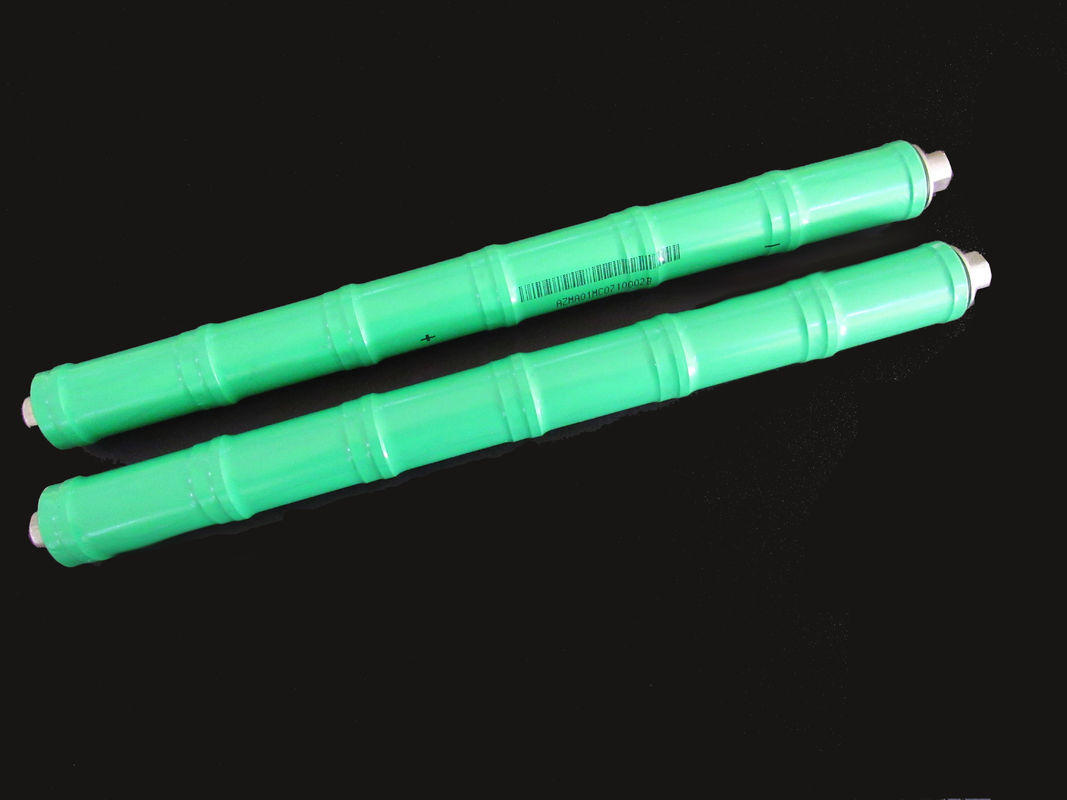

The whole battery pack consisted by 20 set of above modules

Cautions of Battery Pack Transportation and Storage

1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
