HEV Car Lexus Hybrid Battery Replacement 244.6 Voltage For Lexus ES300H

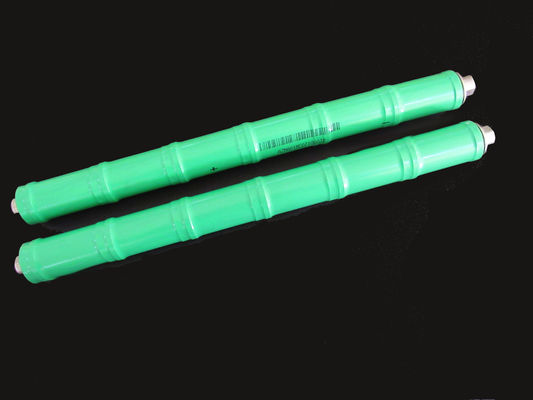

Hyno energy. HEV Car Battery Replacement For Lexus ES300H. 6500mAh 244.8V

PERFORMANCE (module only)

Tests should be done within one month of receiving the goods under the following conditions.

Test condition

Temperature:20±5℃

Relative Humidity:65±20%

Atmospheric Pressure:86～106kPa

Standard charge discharge specification

Discharge: 6000mA (1C) to 168.0V

Charge: 6000mA (1C)×1hrs,1200mA (0.2C)×1hrs

Discharge: 6000mA (1C) to 12.

Cautions of Battery Pack Transportation and Storage

Protect the battery pack from violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation. The ambient temperature is not over 55℃.

Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
