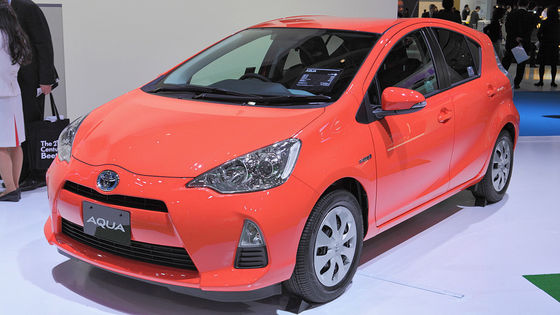

Automotive Toyota Aqua Hybrid Battery High Mileage Customized Solution

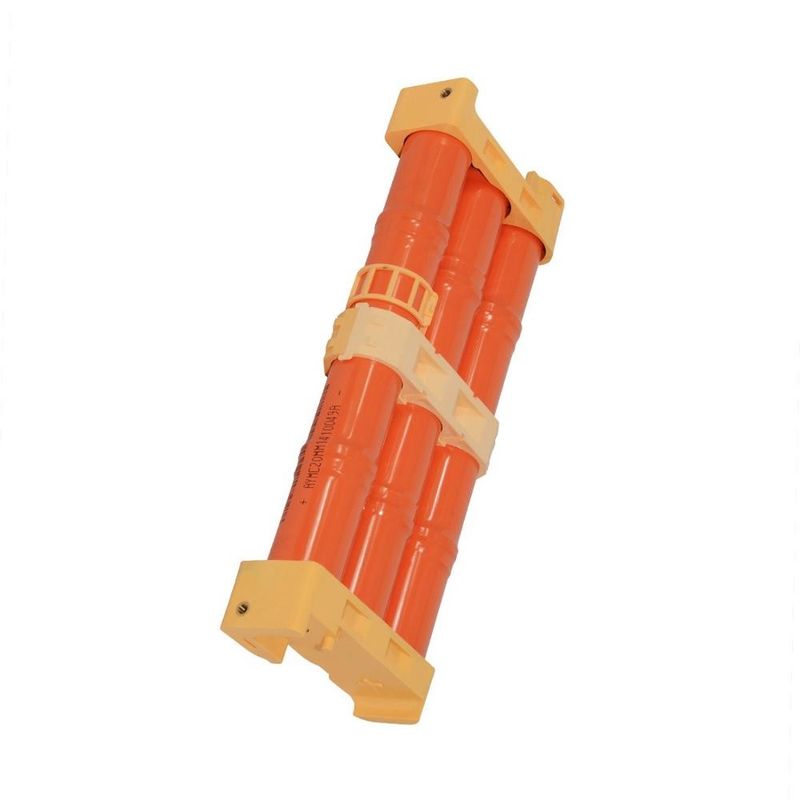

Hyno Energy. Original Factory Hybrid Battery For Toyota Prius C-Aqua. 6500mAh 144V, Customized Solution

The battery-powered electric vehicle is older than you think. Here in the U.S., the first successful electric car made its debut around 1890 thanks to William Morrison, a chemist who lived in Des Moines, Iowa. His six-passenger vehicle, capable of a top speed of 14 miles per hour, was basically a wagon with an electric motor, but nonetheless helped jump-start an interest in building electric vehicles in the U.S.

Use Cautions of battery pack

1. Ensure the normal operation of car management system during the use process, and forbid over- charge and over-discharge to battery.
2. As storage battery is charged by gasoline engine, so external power supply charge is not needed. However, if the vehicle parks for a long time, the electricity of high power storage battery will run out. Therefore, be sure to drive the car for at least 30minutes or 16Km every several months.
3. If there is leaked liquid, don’t touch the spilled liquid, because this may be the alkaline electrolyte that hybrid battery leaks. If skin and eyes contact to this liquid, please flush with plenty of water at once, or if possible, wash with boric acid solution and see the doctor at once.

Technical Specification

Cautions of Battery Pack Transportation and Storage

1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
