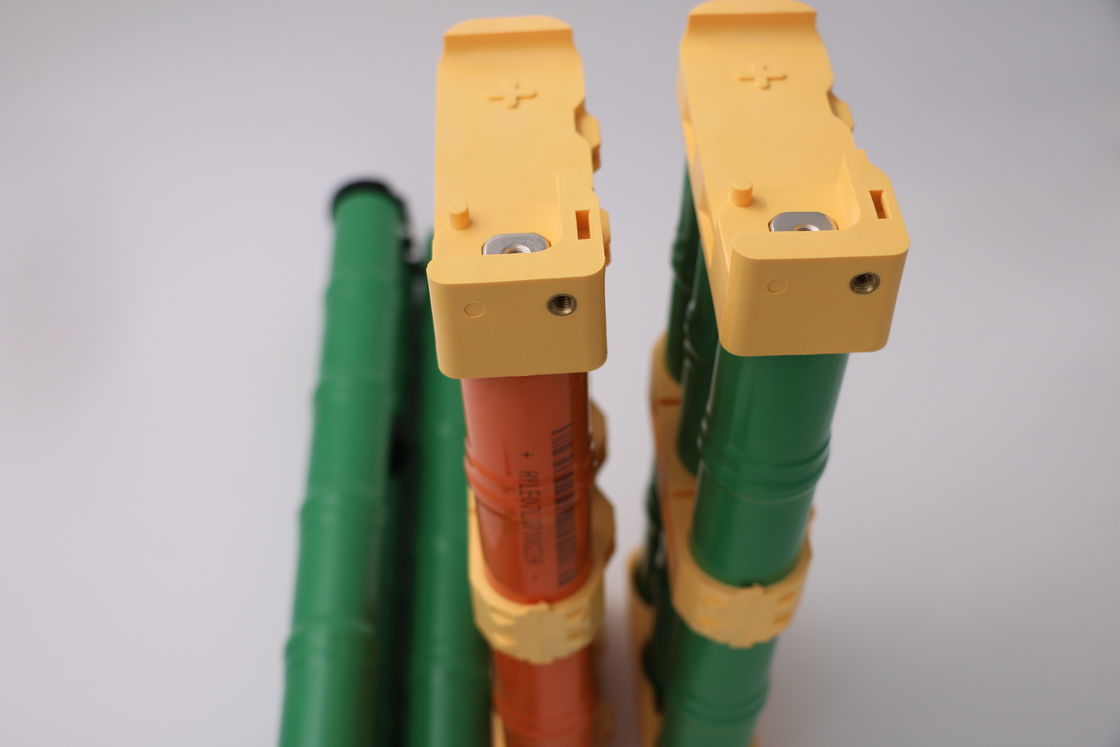

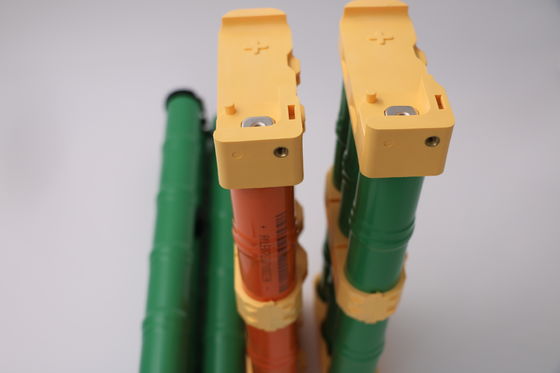

Hyno Energy. Hybrid Battery Pack For Toyota Carmy 6th Gen. (2007-2011), XV40. 6500mAh 244.8V, OEM Factory
Toyota Hybrid System : CMI Toyota are the experts when it comes to Hybrid vehicles and their smart technology. Here are some important facts to help you learn more about the award-winning Toyota Hybrid systems and vehicles.There is nothing complicated about Toyota Hybrid. You can simply jump in, hit the start button and get going, with the Hybrid system taking care of the rest.
General Cautions:
- When two or more similar batteries are used together, the state must be the same.
- Stop using the new battery immediately if it is found to be alkaline, fever or other abnormalities occur. Please wipe it with a soft dry cloth if there is dirt in the battery. Prevent battery from contact with equipment, leakage or useless.
- Batteries must be stored or used in a specified, dry, heat dissipating environment. (According to the specification, the long-term storage temperature of the battery is -20℃~35℃). Storage or use of batteries should be placed in a special area. No other articles around, especially flammable or explosive articles.
Technical Specification:
| Item |
Specification |
| Dimension |
Length (mm) × Width (mm) × Height (mm) |
668×29 2×1 09 |
| Approximate Weight (kg) |
36 |
| Typical Capacity(mAh) |
6500 |
| Minimum Capacity (mAh) |
6000 |
| Nominal Voltage (V) |
244.8 |
| Peak Discharge (30C discharge for 10S) |
Voltage ≥ 163.2V |
| Peak Charge (15C charge for 10S) |
Voltage ≤ 340V |
| Continuous Discharge (15C discharge for 60S) |
Voltage ≥ 183.6V |
| Specific Power |
≥1000W/kg |
| Specific Energy |
≥40Wh/kg |
| High Temperature Performance ( 55℃ 1C discharge rate) |
≥90% |
| Low Temperature Performance (-20℃ 1C discharge rate) |
≥85% |
| Charge Retention Performance (28days charge retention rate) |
≥80% |
| Working Temperature Range |
-40℃ to +55℃ |
| Cycle Life (C/2 charge, 1C discharge) |
≥1000cycles |
| |
|
|
Cautions of Battery Pack Transportation and Storage
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
- Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
- Interval: 30 minutes
- Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
- Interval: 1hours
- Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
- Interval: 30 minutes
- Charge: 2A charge for 2.4 hours
Installation Cautions of battery pack
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
- Please operate according to assembly manual during the installation of Prius battery pack.
- Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
- Don’t twist and bend battery modules and accessories when assembling battery pack.
- Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
- Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
