Product Details:

Place of Origin: China
Brand Name: Hyno
Certification: ISO/TS16949:2009, ISO9001:2008
Model Number: Hyno Accord 144

Payment & Shipping Terms:

Minimum Order Quantity: 1 pack
Price: To be discussed
Packaging Details: Standard packing, paper box, wooden box
Delivery Time: To be discussed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 packs/month
Detailed Product Description
Material: NIMH Battery Typical Capacity: 6500mAh
Minimum Capacity: 6000aAh Cycle Life: ≥1000cycles
Voltage Of Single Battery Module: 7.2V Transportation: Options
High Light:

honda accord oem battery

,

honda accord car battery

Hyno Energy. Original Hybrid Battery Factory, Honda Accord (2005-2007). 6500mAh 144V, Long Life Circle

NiMH battery left at 100% state of charge (SOC) will discharge at a faster rate than one at 40% SOC.

The nickel metal hydride (NiMH) battery is the best and most common hybrid battery so far, and the sheer volume of them is staggering. NiHM batteries have been in use for well over 15 years, and out of the more than 7 million hybrid cars on the road worldwide, 90% have NiMH battery packs.Then, consider the cells. Older Honda Insights and Civics had 120 cells per battery pack, and the Ford Escape had 250. Toyota is in the mid-range with about 168 cells in a 2005 Prius, 228 for 2001 Prius, and others falling somewhere in between.

General Cautions

  1. Battery mixing is strictly prohibited neither with different charged states for the similar batteries nor for a dry cell, other battery of different sizes, or brands.
  2. When two or more similar batteries are used together, the state must be the same.
  3. Stop using the new battery immediately if it is found to be alkaline, fever or other abnormalities occurs. Please wipe it with a soft dry cloth if there is dirt in the battery. Prevent battery from contact with equipment, leakage or useless.
  4. Batteries must be stored or used in a specified, dry, heat dissipating environment. (According to the specification, the long-term storage temperature of the battery is -20℃~35℃). Storage or use of batteries should be placed in a special area. No other articles around, especially flammable or explosive articles.
  5. No baby or child is allowed to remove the battery from the charger or equipment. during charging or use.
  6. Batteries do not use for a long time, need to activate 1 times every 3 months; activation methods need to communicate with manufacturers.

Technical Specification

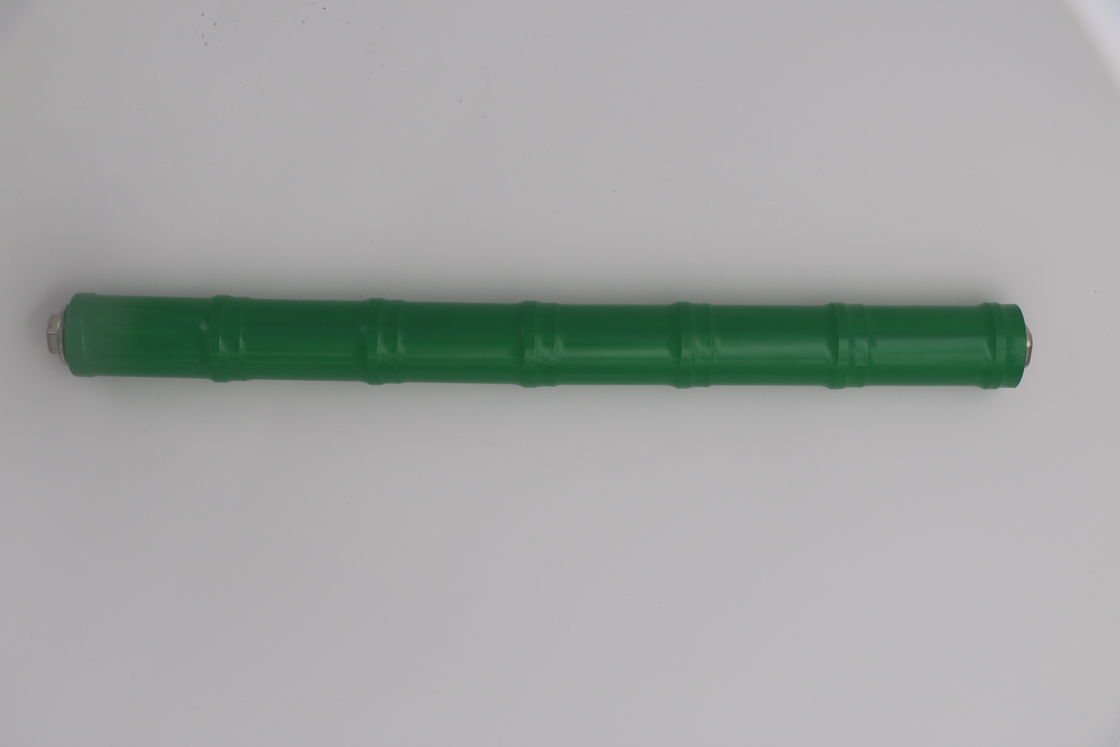

Battery Module
Description Original Replacement
Voltage 7.2V 7.2V
Capacity 6.5Ah 6.5Ah
Length 380mm 380mm
Net Weight 1040g

1040g



The whole battery pack consisted by 20 set of above modules





Item Specification
Dimension Length (mm) × Width (mm) × Height (mm) 290 x 294 x 110
Approximate Weight (kg) 30
Typical Capacity(mAh) 6500
Minimum Capacity (mAh) 6000
Nominal Voltage (V) 144
High Temperature Performance ( 55℃ 1C discharge rate) ≥90%
Low Temperature Performance (-20℃ 1C discharge rate) ≥85%
Charge Retention Performance (28days charge retention rate) ≥80%
Working Temperature Range -20℃ to +55℃
Cycle Life (C/2 charge, 1C discharge) ≥1000cycles




Cautions of Battery Pack Transportation and Storage

  1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
  2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
  3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

  1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  2. Interval: 30 minutes
  3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
  4. Interval: 1hours
  5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  6. Interval: 30 minutes
  7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

  1. Please operate according to assembly manual during the installation of Prius battery pack.
  2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
  3. Don’t twist and bend battery modules and accessories when assembling battery pack.
  4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
  5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.

Use Cautions of battery pack

  1. Ensure the normal operation of car management system during the use process, and forbid over- charge and over-discharge to battery.
  2. As storage battery is charged by gasoline engine, so external power supply charge is not needed. However, if the vehicle parks for a long time, the electricity of high power storage battery will run out. Therefore, be sure to drive the car for at least 30minutes or 16Km every several months.
  3. If there is leaked liquid, don’t touch the spilled liquid, because this may be the alkaline electrolyte that hybrid battery leaks. If skin and eyes contact to this liquid, please flush with plenty of water at once, or if possible, wash with boric acid solution and see the doctor at once.

Quality warranty

  1. The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
  2. If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
  3. The battery is not within the warranty range in the following situation:
  1. The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
  2. The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
  3. The battery damage caused by the out of control of BMS.

Appendix

Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
