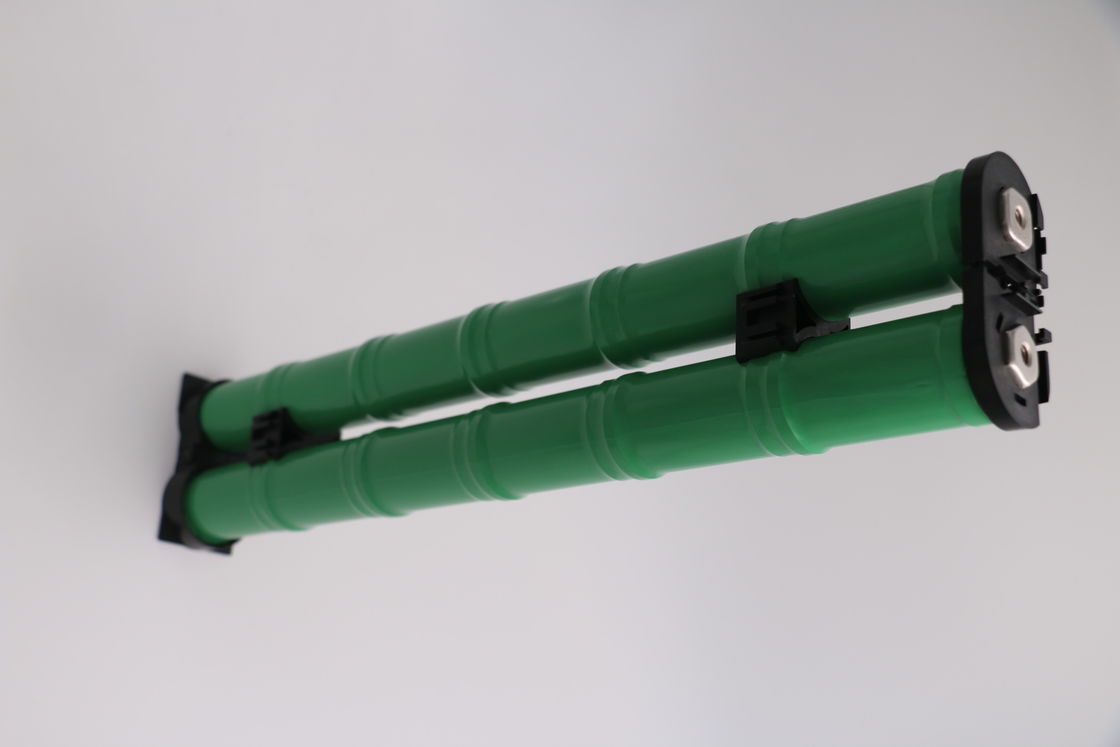

06 07 08 Honda Civic Hybrid Battery / 158.4V Hybrid Battery Cell Replacement

Hyno Energy. Honda Civic (2006-2011) Hybrid Battery Replacement. 6500mAh 158.4V, Guaranteed performance

What are the warning signs that your Honda Civic Hybrid Battery or Honda Civic IMA Battery is failing? Poor gas mileage, IMA warning light illuminated, poor acceleration, these are all direct warning signs that its time for hybrid battery replacement. The Honda Civic IMA or Hybrid Battery is an entire module that contains several items such as the battery cells, bus bars, and a charging controller. We recommend replacing the entire battery module pack when attempting to correct any of the failure symptoms of they IMA battery.

Test Condition:

Tests should be done within one month of receiving the goods under the following conditions.

Test condition

Temperature:20±5℃

Relative Humidity:65±20%

Atmospheric Pressure:86～106kPa

Standard charge discharge specification

Discharge: 6000mA (1C) to 12.0V

Charge: 6000mA (1C)×1hrs,1200mA (0.2C)×1hrs

Discharge: 6000mA (1C) to 12.0V

Technical Specification

The whole battery pack consisted by 11 set of above modules

Cautions of Battery Pack Transportation and Storage

1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
