Product Details:
Payment & Shipping Terms:
|

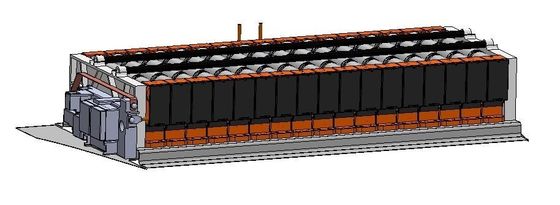

Model: | Hyno Camry 245.2 | Nominal Voltage: | 244.6V |
---|---|---|---|
Material: | NIMH Battery | Typical Capacity: | 6500mAh |
Minimum Capacity: | 6000aAh | Cycle Life: | ≥1000cycles |
High Light: | toyota camry car battery,camry hybrid battery cell |
First, be sure that the battery isn’t still covered under the warranty from Toyota. In the states where the Camry sells most, like California and the states that have adopted California’s CARB air quality regulations for vehicles, the warranty is 10 years and 150,000 miles, whichever comes first. So check if your state mandates this warranty, and if it does, schedule your repair or replacement with your local Toyota dealership. It would be wise to call in advance and verify your vehicle is covered. The warranty in states that have not adopted these green-car mandates is eight years, or 100,000 miles.
Item | Specification | |
Dimension | Length (mm) × Width (mm) × Height (mm) | 668×29 2×1 09 |
Approximate Weight (kg) | 36 | |
Typical Capacity(mAh) | 6500 | |
Minimum Capacity (mAh) | 6000 | |
Nominal Voltage (V) | 244.8 | |
Peak Discharge (30C discharge for 10S) | Voltage ≥ 163.2V | |
Peak Charge (15C charge for 10S) | Voltage ≤ 340V | |
Continuous Discharge (15C discharge for 60S) | Voltage ≥ 183.6V | |
Specific Power | ≥1000W/kg | |
Specific Energy | ≥40Wh/kg | |
High Temperature Performance ( 55℃ 1C discharge rate) | ≥90% | |
Low Temperature Performance (-20℃ 1C discharge rate) | ≥85% | |
Charge Retention Performance (28days charge retention rate) | ≥80% | |
Working Temperature Range | -40℃ to +55℃ | |
Cycle Life (C/2 charge, 1C discharge) | ≥1000cycles | |
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
