|Material:||NIMH Battery||Cycle Life:||≥1000cycles|
|Approximate Weight (kg):||30||High Temperature Performance ( 55℃ 1C Discharge Rate):||≥90%|
|Low Temperature Performance (-20℃ 1C Discharge Rate):||≥85%||Transportation:||FOB/CIF|
2010 honda insight battery,
2011 honda insight hybrid battery
Most gasoline-electric hybrid vehicle drivers will at some point ask these questions: How long do hybrid batteries last? Are they expensive to replace?
Short Answer: It depends on the make and model of your car, whether you have a warranty, whether you can get cash or credit for recycling your hybrid battery and, importantly, what type of hybrid battery is it—nickel-metal hydride or lithium-ion?

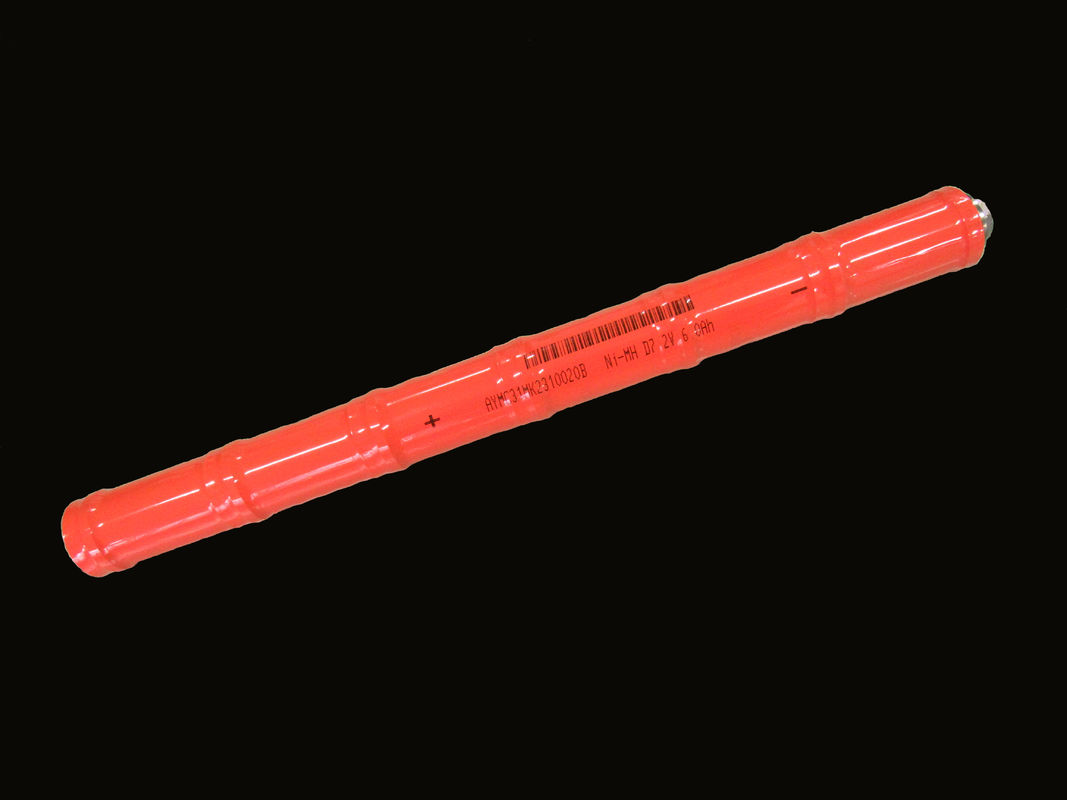

The whole battery pack consisted by 20 set of above modules
|Dimension||Length (mm) × Width (mm) × Height (mm)||290 x 294 x 110|
|Approximate Weight (kg)||30|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||144|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-20℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
