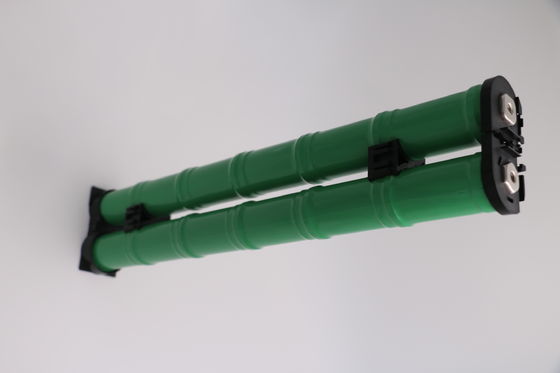

OEM 2010 Honda Insight Battery Long Life Expectancy 6500mAh 100.8 Volt

Hyno Energy. OEM Battery Replcement For Honda Insight (2006-2012). 6500mAh 100.8V, Original Factory

If you're faced with replacing the battery on an out-of-warranty car, there's no need to panic. The cost of a new battery pack continues to decline and now stands at about $3,000, not bad when you consider how long they last. A used pack salvaged from a wrecked vehicle will set you back around $1,000.

Battery replacement should be left to professionals. There are strict regulations for the handling and disposal of old batteries, which can leak hazardous materials. In fact, very few third-party mechanics are qualified to tackle the job. Almost all replacements are performed by dealers/service stations, who have the experience and know-how to do it the right way.

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.

Technical Specification

The whole battery pack consisted by 7 set of above modules

Cautions of Battery Pack Transportation and Storage

1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours
