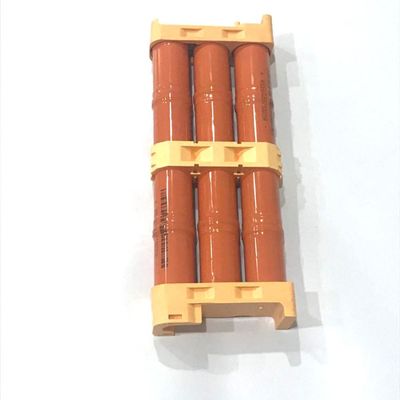

Lexus ES300H Hybrid Battery Cell Replacement 6500mAh 244.6 Voltage Safety

I'm Online Chat Now

Lexus ES300H Hybrid Battery Cell Replacement 6500mAh 244.6 Voltage Safety

China Lexus ES300H Hybrid Battery Cell Replacement 6500mAh 244.6 Voltage Safety supplier
Lexus ES300H Hybrid Battery Cell Replacement 6500mAh 244.6 Voltage Safety supplier Lexus ES300H Hybrid Battery Cell Replacement 6500mAh 244.6 Voltage Safety supplier

Large Image :  Lexus ES300H Hybrid Battery Cell Replacement 6500mAh 244.6 Voltage Safety

Product Details:

Place of Origin: China
Brand Name: Hyno
Certification: ISO/TS16949:2009, ISO9001:2008
Model Number: Hyno ES300H 245

Payment & Shipping Terms:

Minimum Order Quantity: 1 pack
Price: To be discussed
Packaging Details: Standard packing, paper box, wooden box
Delivery Time: To be discussed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 packs/month
Detailed Product Description
Model: Hyno ES300H 245 Nominal Voltage: 244.6 Voltage
Typical Capacity: 6500mAh Minimum Capacity: 6000aAh
Cycle Life: ≥1000cycles Place Of Origin: Mainland China
Application: Automative Car Battery Material: NIMH Battery
High Light:

hybrid electric vehicle battery

,

lexus ct200h hybrid battery

Hybrid Battery Replacement For Lexus ES300H. 6500mAh 244.8V



Use Cautions of battery pack

  1. When charging the battery, please charge in accordance with the charging method in the product specification. Use the specified charger in the specified temperature range. Do not reverse charge, do not exceed the required charging current, and do not exceed the required charging time. Do not charge only with limited voltage and limited current.
  2. Do not put the battery into the fire or heating it.
  3. Do not connect the positive and negative pole with conductive substances such as metals.
  4. Do not dissect the battery.
  5. Do not refit or damage batteries.
  6. Do not solder battery.

Cautions of Battery Pack Transportation and Storage

To avoid violent vibrating and external force impacting, don’t cast, roll, invert, extrude, and high stacking while handling and transportation .

Protect the battery pack from rain during the transportation, the ambient temperature should not be over 55℃

Store the battery pack in a cool and dry place and the temperature range should be 5-25℃



Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V, to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

  1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  2. Interval: 30 minutes
  3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
  4. Interval: 1hours
  5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  6. Interval: 30 minutes
  7. Charge: 2A charge for 2.4 hours



Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

  1. Please operate according to assembly manual during the installation of Prius battery pack.
  2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
  3. Don’t twist and bend battery modules and accessories when assembling battery pack.
  4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
  5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.



Quality warranty

  1. The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
  2. If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
  3. The battery is not within the warranty range in the following situation:
  1. The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
  2. The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
  3. The battery damage caused by the out of control of BMS.

Appendix

Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
