Customized Honda Accord Hybrid Battery / Honda Accord Battery Replacement

Name: Customized Honda Accord Hybrid Battery / Honda Accord Battery Replacement
Brand: Hyno
SKU: Hyno Accord 159
Price: 1.00 USD
Availability: InStock
Rating: 5 (174 reviews)

Customized Honda Accord Hybrid Battery / Honda Accord Battery Replacement supplier

Large Image : Customized Honda Accord Hybrid Battery / Honda Accord Battery Replacement

Product Details:

Place of Origin:	China
Brand Name:	Hyno
Certification:	ISO/TS16949:2009, ISO9001:2008
Model Number:	Hyno Accord 159

Payment & Shipping Terms:

Minimum Order Quantity:	1 pack
Price:	To be discussed
Packaging Details:	Standard packing, paper box, wooden box
Delivery Time:	To be discussed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 packs/month

Contact Now

Detailed Product Description

Material:	NIMH Battery	Cycle Life:	≥1000cycles
Color:	Customized	MOQ:	One Pack
Package:	Factory Standard	Transportation:	Options
High Light:	honda accord battery replacement , honda accord car battery

Hyno Energy. Guaranteed Performance of Honda Accord (2009-2012) Battery. 6500mAh 158.4V

Full Hybrid
These are the hybrids best known to the typical consumer. They run on electricity for a limited time at low speeds and gentle throttle. Most notable mainstream hybrid systems are made by Ford, Hyundai, General Motors, and Toyota.

Plug-in Hybrid
Plug-in hybrids are designed to be charged from the wall to work as electric cars some of the time. They normally use their electric range of between 10 and 35 miles first, and then switch to normal hybrid operation. They can be either parallel or series hybrids. Some parallel hybrids can act as series hybrids under certain conditions when it’s deemed more efficient.

General Cautions

When charging the battery, please charge in accordance with the charging method in the product specification. Use the specified charger in the specified temperature range. Do not reverse charge, do not exceed the required charging current, and do not exceed the required charging time.
Do not charge only with limited voltage and limited current.
Do not put the battery into the fire or heating it.
Do not connect the positive and negative pole with conductive substances such as metals.
Do not dissect the battery.
Do not refit or damage batteries.

Technical Specification

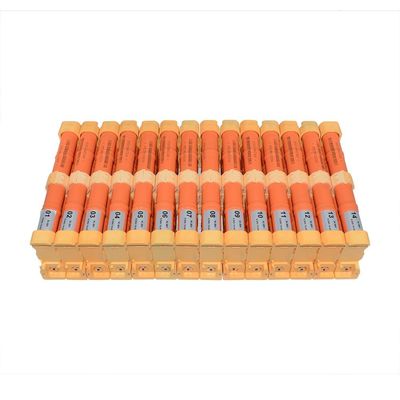

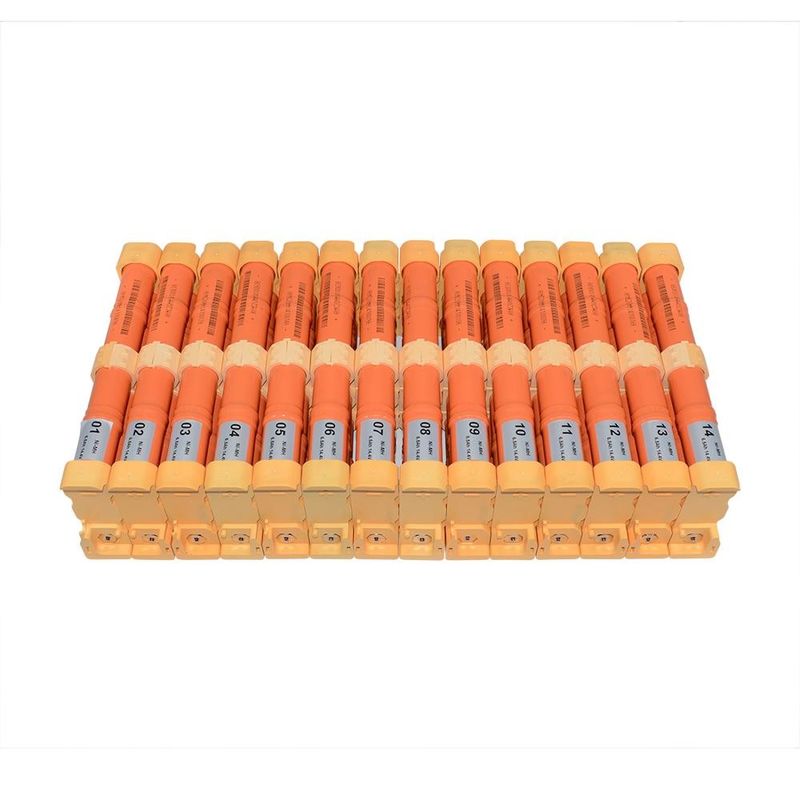

Battery Module
Description	Original	Replacement
Voltage	14.4V	14.4V
Capacity	6.5Ah	6.5Ah
Length	380mm	380mm
Net Weight	2040g	2040g

The whole battery pack consisted by 11 set of above modules

Item		Specification
Dimension	Length (mm) × Width (mm) × Height (mm)	290 x 294 x 110
Approximate Weight (kg)		30
Typical Capacity(mAh)		6500
Minimum Capacity (mAh)		6000
Nominal Voltage (V)		158.4
High Temperature Performance ( 55℃ 1C discharge rate)		≥90%
Low Temperature Performance (-20℃ 1C discharge rate)		≥85%
Charge Retention Performance (28days charge retention rate)		≥80%
Working Temperature Range		-20℃ to +55℃
Cycle Life (C/2 charge, 1C discharge)		≥1000cycles

Cautions of Battery Pack Transportation and Storage

Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
Interval: 30 minutes
Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
Interval: 1hours
Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
Interval: 30 minutes
Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

Please operate according to assembly manual during the installation of Prius battery pack.
Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
Don’t twist and bend battery modules and accessories when assembling battery pack.
Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.

Use Cautions of battery pack

Ensure the normal operation of car management system during the use process, and forbid over- charge and over-discharge to battery.
As storage battery is charged by gasoline engine, so external power supply charge is not needed. However, if the vehicle parks for a long time, the electricity of high power storage battery will run out. Therefore, be sure to drive the car for at least 30minutes or 16Km every several months.
If there is leaked liquid, don’t touch the spilled liquid, because this may be the alkaline electrolyte that hybrid battery leaks. If skin and eyes contact to this liquid, please flush with plenty of water at once, or if possible, wash with boric acid solution and see the doctor at once.

Quality warranty

The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
The battery is not within the warranty range in the following situation:

The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
The battery damage caused by the out of control of BMS.
