Product Details:
Payment & Shipping Terms:
|
Nominal Voltage: | 14.4V (Single Module) | Material: | NIMH Battery |
---|---|---|---|
Cycle Life: | ≥1000cycles | Number Of Battery Cell: | 11 |
Electronics Included: | Yes | Programming Required: | No |
High Light: | honda civic hybrid battery sticks,honda civic car battery replacement |
Your cars’ self-diagnostic system will detect most problems that can occur in the hybrid battery or charging system. If a fault is detected, one or more fault codes will be set and the IMA warning light will be illuminated. To read the codes and diagnose the fault, a scan tool capable of reading Honda fault codes must be plugged into your cars’ OBD II diagnostic connector (located under the dash near the steering column).
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

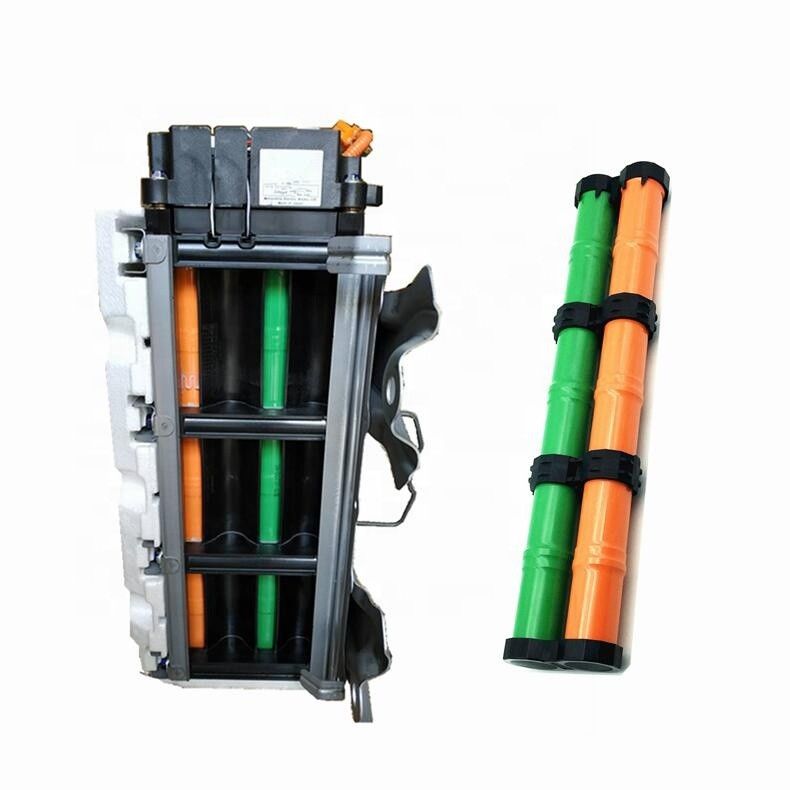

Battery Module | ||
Description | Original | Replacement |
Voltage | 14.4V | 14.4V |
Capacity | 6.5Ah | 6.5Ah |
Length | 380mm | 380mm |
Net Weight | 2040g |
2040g |
The whole battery pack consisted by 11 set of above modules
Item | Specification | |
Dimension | Length (mm) × Width (mm) × Height (mm) | 290 x 294 x 110 |
Approximate Weight (kg) | 30 | |
Typical Capacity(mAh) | 6500 | |
Minimum Capacity (mAh) | 6000 | |
Nominal Voltage (V) | 158.4 | |
High Temperature Performance ( 55℃ 1C discharge rate) | ≥90% | |
Low Temperature Performance (-20℃ 1C discharge rate) | ≥85% | |
Charge Retention Performance (28days charge retention rate) | ≥80% | |
Working Temperature Range | -20℃ to +55℃ | |
Cycle Life (C/2 charge, 1C discharge) | ≥1000cycles | |
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
