Product Details:
Payment & Shipping Terms:
|
Model: | Hyno Civic 144 | Nominal Voltage: | 7.2V (Single Module) |
---|---|---|---|
Material: | NIMH Battery | Typical Capacity: | 6500mAh |
Minimum Capacity: | 6000aAh | Cycle Life: | ≥1000cycles |
High Light: | honda civic hybrid battery pack,honda civic car battery replacement |
A low or dead hybrid battery should not prevent your engine from starting because it also has a conventional 12-volt battery in the engine compartment, and a conventional starter motor to crank the engine. This system serves as a backup for the hybrid battery, and is also used during cold weather to start the engine.
Caution: High Voltage hybrid batteries can be dangerous! A shock from a high voltage battery can be deadly.

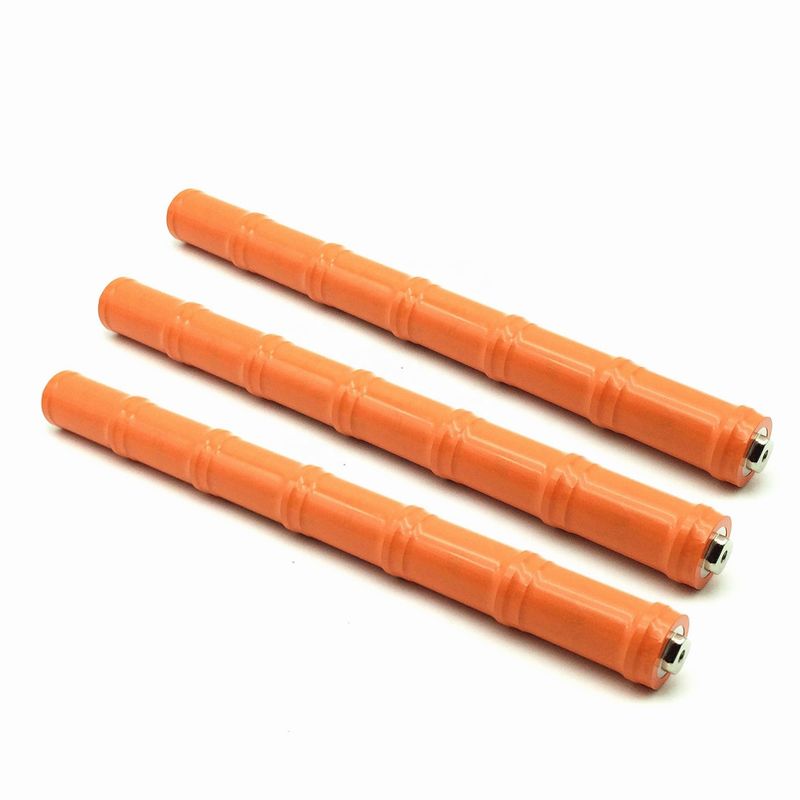

Battery Module | ||
Description | Original | Replacement |
Voltage | 7.2V | 7.2V |
Capacity | 6.5Ah | 6.5Ah |
Length | 380mm | 380mm |
Net Weight | 1040g |
1040g |
The whole battery pack consisted by 20 set of above modules
Item | Specification | |
Dimension | Length (mm) × Width (mm) × Height (mm) | 290 x 294 x 110 |
Approximate Weight (kg) | 30 | |
Typical Capacity(mAh) | 6500 | |
Minimum Capacity (mAh) | 6000 | |
Nominal Voltage (V) | 144 | |
High Temperature Performance ( 55℃ 1C discharge rate) | ≥90% | |
Low Temperature Performance (-20℃ 1C discharge rate) | ≥85% | |
Charge Retention Performance (28days charge retention rate) | ≥80% | |
Working Temperature Range | -20℃ to +55℃ | |
Cycle Life (C/2 charge, 1C discharge) | ≥1000cycles | |
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
