Payment & Shipping Terms:
|Material:||NiMH Battery||Typical Capacity:||6500mAh|
|Minimum Capacity:||6000aAh||Cycle Life:||≥1000cycles|
|Application:||Automative Car Battery-Camry 7th Gen.||Payment Terms:||To Be Discussed|

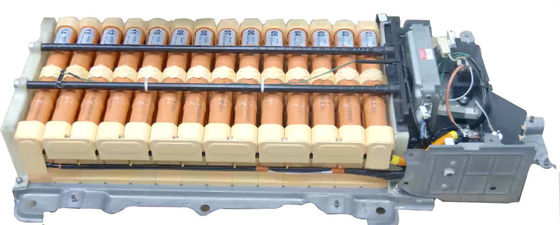

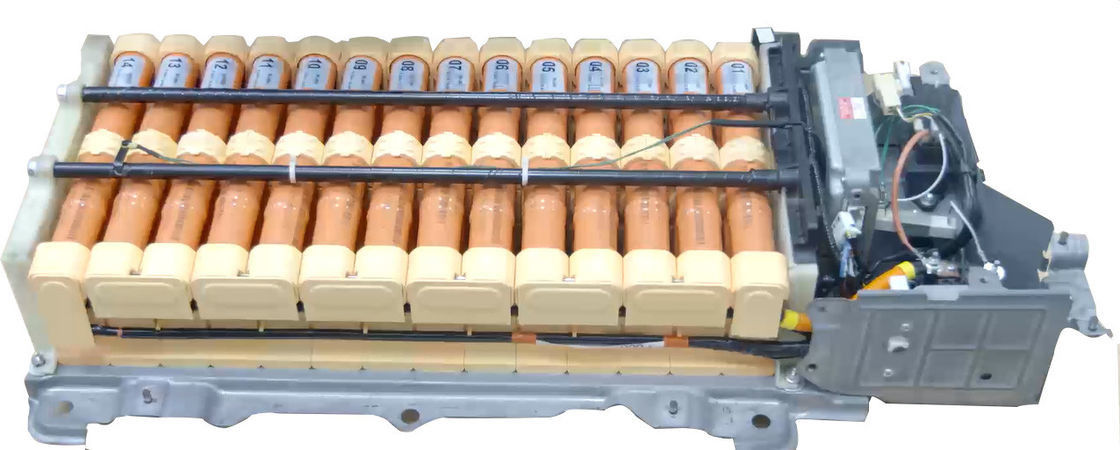

camry hybrid battery cell,
toyota camry hybrid battery replacement
Taking a look under the hood, you’ll see an electric motor and gasoline engine; they work in conjunction to create that amazing fuel economy and cut down on emissions, while still allowing you to drive at the speed and distance necessary. Additionally, you’ll enjoy a smooth, quiet ride, especially at low speeds! Central Florida hybrids such as the new Toyota Camry can actually sense how much power your ride requires, and will seamlessly switch back and forth between the electric motor, gasoline engine, and a combination of the two to get you where you need to be and in the most fuel-efficient way.
|Dimension||Length (mm) × Width (mm) × Height (mm)||668×29 2×1 09|
|Approximate Weight (kg)||36|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||244.8|
|Peak Discharge (30C discharge for 10S)||Voltage ≥ 163.2V|
|Peak Charge (15C charge for 10S)||Voltage ≤ 340V|
|Continuous Discharge (15C discharge for 60S)||Voltage ≥ 183.6V|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-40℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
