|Material:||NIMH Battery||Typical Capacity:||6500mAh|
|Minimum Capacity:||6000aAh||Cycle Life:||≥1000cycles|
|Size:||Standard||Application:||Automative Car Battery|

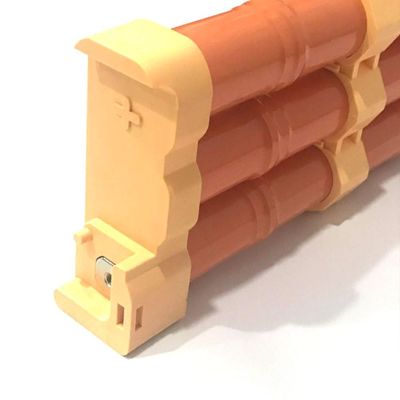

hybrid electric vehicle battery,
2011 lexus rx450h battery
Tests should be done within one month of receiving the goods under the following conditions.
Standard charge discharge specification
Discharge: 6000mA (1C) to 168.0V
Charge: 6000mA (1C)×1hrs,1200mA (0.2C)×1hrs
Discharge: 6000mA (1C) to 12.0V
|Dimension||Length (mm) × Width (mm) × Height (mm)||550 x 294 x 110|
|Approximate Weight (kg)||30|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||201.6|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-20℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
