Payment & Shipping Terms:
|Model:||Hyno Prius 202.2||Voltage Of Battery Pack:||201.6V|
|Type Of Battery:||NiMH Battery||Typical Capacity:||6500mAh|
|Minimum Capacity:||6000aAh||Cycle Life:||≥1000cycles|
toyota prius battery cell replacement,

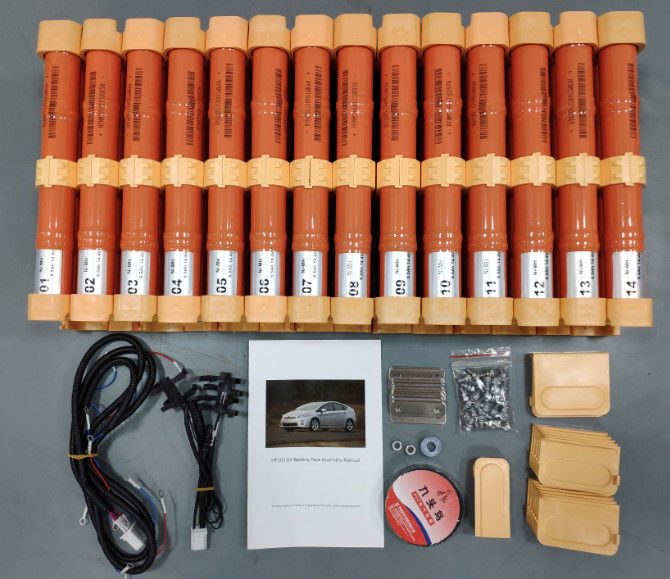

prius hybrid battery pack
If you have some modules wandering away from one another during testing, then either the battery is genuinely failing (most likely) or the module that watches the battery voltage is drunk at the wheel (less likely). In many cases, by the time you get your hands on a vehicle, someone else has already worked on it, and they’ve hung a battery replacement on it along with a nice warning sticker that says “Do not open case, warranty is void if seal is broken.” If you see one of these, stop immediately, assess the nature of the warranty and then get a new battery from whoever owes it to the customer.
|Dimension||Length (mm) × Width (mm) × Height (mm)||550 x 294 x 110|
|Approximate Weight (kg)||30|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||201.6|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-20℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
