HEV Battery Pack / Lexus Ct200h Battery Replacement 6500mAh 201.6 Volt

I'm Online Chat Now

HEV Battery Pack / Lexus Ct200h Battery Replacement 6500mAh 201.6 Volt

China HEV Battery Pack / Lexus Ct200h Battery Replacement 6500mAh 201.6 Volt supplier
HEV Battery Pack / Lexus Ct200h Battery Replacement 6500mAh 201.6 Volt supplier HEV Battery Pack / Lexus Ct200h Battery Replacement 6500mAh 201.6 Volt supplier

Large Image :  HEV Battery Pack / Lexus Ct200h Battery Replacement 6500mAh 201.6 Volt

Product Details:

Place of Origin: China
Brand Name: Hyno
Certification: ISO/TS16949:2009, ISO9001:2008
Model Number: Hyno CT200H 202

Payment & Shipping Terms:

Minimum Order Quantity: 1 pack
Price: To be discussed
Packaging Details: Standard packing, paper box, wooden box
Delivery Time: To be discussed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 packs/month
Contact Now
Detailed Product Description
Nominal Voltage: 201.6 Volt Material: NIMH Battery
Typical Capacity: 6500mAh Minimum Capacity: 6000aAh
Cycle Life: ≥1000cycles Warranty: 36 Month, Unlimited Mileage
High Light:

lexus ct200h battery replacement

,

hybrid vehicle battery replacement

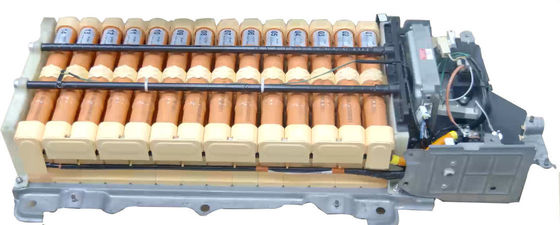

Hyno energy. Brand New HEV Battery Replacement For Lexus CT200H. 6500mAh 201.6V

Car manufacturers assign a longer warranty to their hybrid batteries in nearly all cases. That time frame is usually eight years, which is the minimum life expectancy for how long a hybrid car battery should last. However, you’ll also find that hybrid car batteries that have been taken care of can sometimes last longer than the rest of the car’s mechanical systems!

Use Cautions of battery pack

  1. Do not contacting the battery with water, sea water, or other oxidants.
  2. Do not hit, puncture or shock battery.
  3. Do not use batteries inconsistent with the equipment.
  4. The inside strong alkali with high corrosiveness may burn people. If alkali is hitting eyes, skin or clothing, please drastically clean it with tap water or other clean water and get medical treatment straight away.
  5. If the battery does not work properly in the equipment, please refer to the equipment warning and use manual.
  6. When the battery is out of use, please make sure the switch is off, otherwise, it may cause leakage. When the battery is not used for a long time, make sure the battery is open circuit that the positive and negative poles are completely disconnected from other devices. When the battery with the charging device is in storage, ensure that the static current of the charging device is very small (recommended less than 5μA) , prevent the loop of the battery and the charging device. The battery be over discharged for a long time shall result in liquid leakage, disable to charge, and it is difficult to restore the performance.

Technical Specification

Item Specification
Dimension Length (mm) × Width (mm) × Height (mm) 550 x 294 x 110
Approximate Weight (kg) 30
Typical Capacity(mAh) 6500
Minimum Capacity (mAh) 6000
Nominal Voltage (V) 201.6
High Temperature Performance ( 55℃ 1C discharge rate) ≥90%
Low Temperature Performance (-20℃ 1C discharge rate) ≥85%
Charge Retention Performance (28days charge retention rate) ≥80%
Working Temperature Range -20℃ to +55℃
Cycle Life (C/2 charge, 1C discharge) ≥1000cycles




Cautions of Battery Pack Transportation and Storage

  1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
  2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
  3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

  1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  2. Interval: 30 minutes
  3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
  4. Interval: 1hours
  5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  6. Interval: 30 minutes
  7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

  1. Please operate according to assembly manual during the installation of Prius battery pack.
  2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
  3. Don’t twist and bend battery modules and accessories when assembling battery pack.
  4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
  5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.



Quality warranty



  1. The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
  2. If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
  3. The battery is not within the warranty range in the following situation:
  1. The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
  2. The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
  3. The battery damage caused by the out of control of BMS.

Appendix

Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
