|Model:||Hyno Camry 245.2||Nominal Voltage:||244.8 Volt|
|Material:||NiMH Battery||Minimum Capacity:||6000aAh|
|Cycle Life:||≥1000cycles||Type Of Combination:||L4*3|

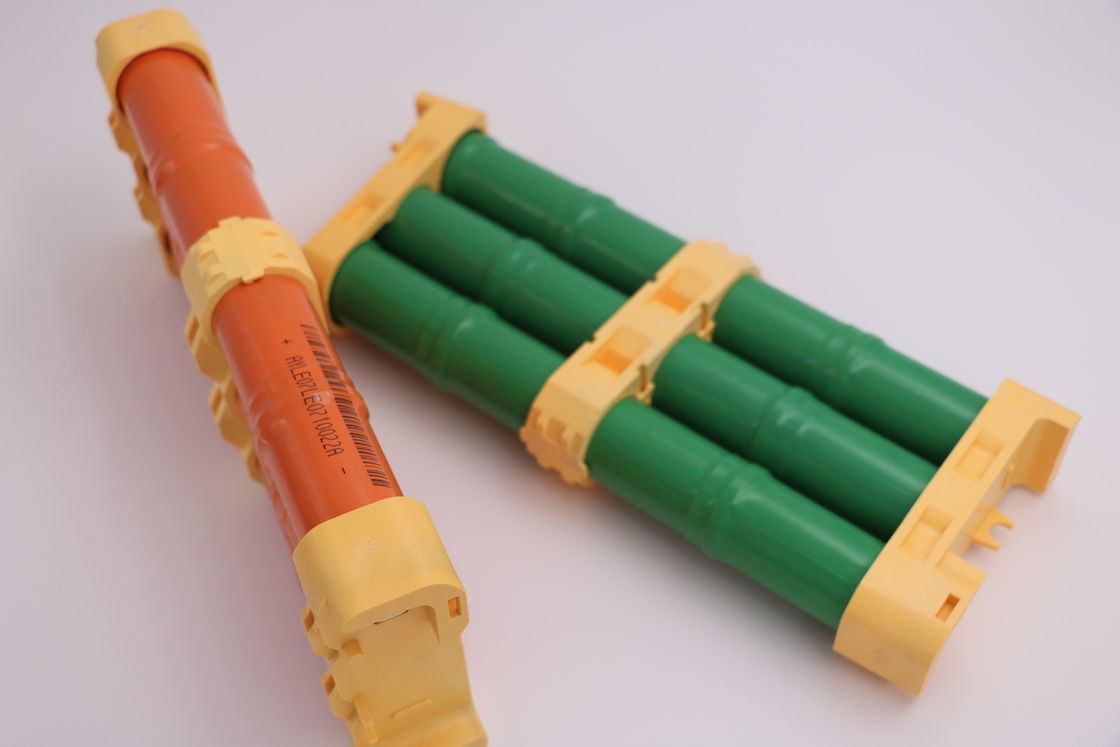

camry hybrid battery cell,
toyota camry hybrid battery replacement
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
This specification is applicable to Ni MH battery for hybrid produced by Hunan Hi-soon Supply Chain Co., Ltd.,
Suitable for: Camry Gen7 (XV50)
This replacement Toyota Camry hybrid battery is guaranteed to be the correct fitment for the following vehicle 7th generation (after years 2012). Our Toyota Camry hybrid battery is a direct replacement option
|Dimension||Length (mm) × Width (mm) × Height (mm)||668×29 2×1 09|
|Approximate Weight (kg)||36|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||244.8|
|Peak Discharge (30C discharge for 10S)||Voltage ≥ 163.2V|
|Peak Charge (15C charge for 10S)||Voltage ≤ 340V|
|Continuous Discharge (15C discharge for 60S)||Voltage ≥ 183.6V|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-40℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
