Payment & Shipping Terms:
|Typical Capacity:||6500mAh||Minimum Capacity:||6000aAh|
|Electronics Included:||Yes||Programming Required:||No|
toyota camry car battery,
toyota camry hybrid battery replacement
While this may seem like a big expense, car makers are set on reducing prices. Why would they do that? It comes down to this: Basically, car manufacturers want their products to succeed. Failures in performance hinder that success, so most hybrid car batteries are designed to last the lifetime of the automobile. The state of charge, temperature and longevity in each battery are carefully managed by automakers who know full well that any setback could throw a wrench into the growth of the still relatively nascent hybrid market.

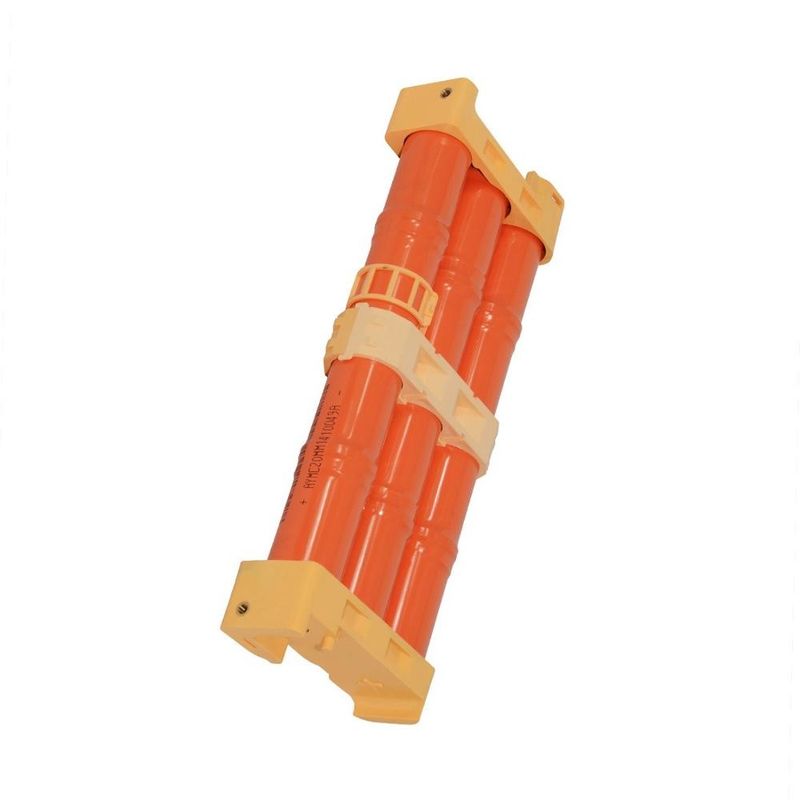

|Dimension||Length (mm) × Width (mm) × Height (mm)||668×29 2×1 09|
|Approximate Weight (kg)||36|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||244.8|
|Peak Discharge (30C discharge for 10S)||Voltage ≥ 163.2V|
|Peak Charge (15C charge for 10S)||Voltage ≤ 340V|
|Continuous Discharge (15C discharge for 60S)||Voltage ≥ 183.6V|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-40℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
