|Material:||NIMH Battery||Typical Capacity:||6500mAh|
|Minimum Capacity:||6000aAh||Cycle Life:||≥1000cycles|

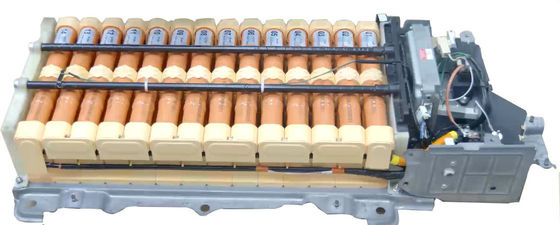

2006 highlander hybrid battery,
2009 toyota highlander battery replacement
When this insulation breaks down, it’s called an “Isolation Fault.” The Prius will try to help locate the fault with a “SubCode” along with a DTC. The “SubCode” may be called an “INF” code, or “Information Code.” For example, P0AA6 is the generic fault, Hybrid Battery Voltage System Isolation Fault. But a P0AA6-613 is a fault that states “insulation resistance of HV transaxle or motor and generator inverters is low.” The hybrid vehicle ECU has determined that a breakdown of insulation exists in the Inverter, the cables from the Inverter to the transmission, or inside the transmission itself. Here is a lack-luster chart that Toyota uses to try to help.
|Dimension||Length (mm) × Width (mm) × Height (mm)||786×292×109|
|Approximate Weight (kg)||43|
|Minimum Capacity (mAh)||6000|
|Nominal Voltage (V)||288|
|Peak Discharge (30C discharge for 10S)||Voltage ≥ 192V|
|Peak Charge (15C charge for 10S)||Voltage ≤ 400V|
|Continuous Discharge (15C discharge for 60S)||Voltage ≥ 216V|
|High Temperature Performance ( 55℃ 1C discharge rate)||≥90%|
|Low Temperature Performance (-20℃ 1C discharge rate)||≥85%|
|Charge Retention Performance (28days charge retention rate)||≥80%|
|Working Temperature Range||-40℃ to +55℃|
|Cycle Life (C/2 charge, 1C discharge)||≥1000cycles|
Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.
The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:
Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.
Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
