Home ProductsHonda Civic Hybrid Battery

2004 2005 Honda Civic Hybrid Battery Replacement 20 Sets Single Modules

I'm Online Chat Now

2004 2005 Honda Civic Hybrid Battery Replacement 20 Sets Single Modules

China 2004 2005 Honda Civic Hybrid Battery Replacement 20 Sets Single Modules supplier
2004 2005 Honda Civic Hybrid Battery Replacement 20 Sets Single Modules supplier 2004 2005 Honda Civic Hybrid Battery Replacement 20 Sets Single Modules supplier

Large Image :  2004 2005 Honda Civic Hybrid Battery Replacement 20 Sets Single Modules

Product Details:

Place of Origin: China
Brand Name: Hyno
Certification: ISO/TS16949:2009, ISO9001:2008
Model Number: Hyno Civic 144

Payment & Shipping Terms:

Minimum Order Quantity: 1 pack
Price: To be discussed
Packaging Details: Standard packing, paper box, wooden box
Delivery Time: To be discussed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 packs/month
Contact Now
Detailed Product Description
Nominal Voltage: 144 Volt Material: NIMH Battery
Minimum Capacity: 6000aAh Cycle Life: ≥1000cycles
Package Contents: Hybrid Battery Pack, Accesories Programming Required: NO
High Light:

honda civic hybrid battery pack

,

honda civic car battery replacement

Hyno Energy. Battery Pack For Honda Civic Hybrid (1998-2005). 6500mAh 144V (20 sets of Single Modules)

General Motors ran into issues with some of its earlier hybrid vehicle batteries. In 2008, it first recalled about 9,000 battery packs for internal leaks that could disable the battery packs for some of its Chevy and Saturn models. This was followed by another recall in 2010 that saw GM replacing all battery packs for 2007 to 2010 hybrid vehicles due to risks of cracking that could cause external leaks. There has not been any word of widespread issues with the replacement packs and my personal experience with the Saturn Vue Hybrid has shown the replacement battery remains reliable, showing a factory state of charge on my basic OBDII tool as it approaches 100,000 miles.

Qaulity Guarantee:

  1. The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
  2. The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
  3. The battery damage caused by the out of control of BMS.
  4. Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
  5. The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
  6. If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
  7. The battery is not within the warranty range in the following situation:

Technical Specification

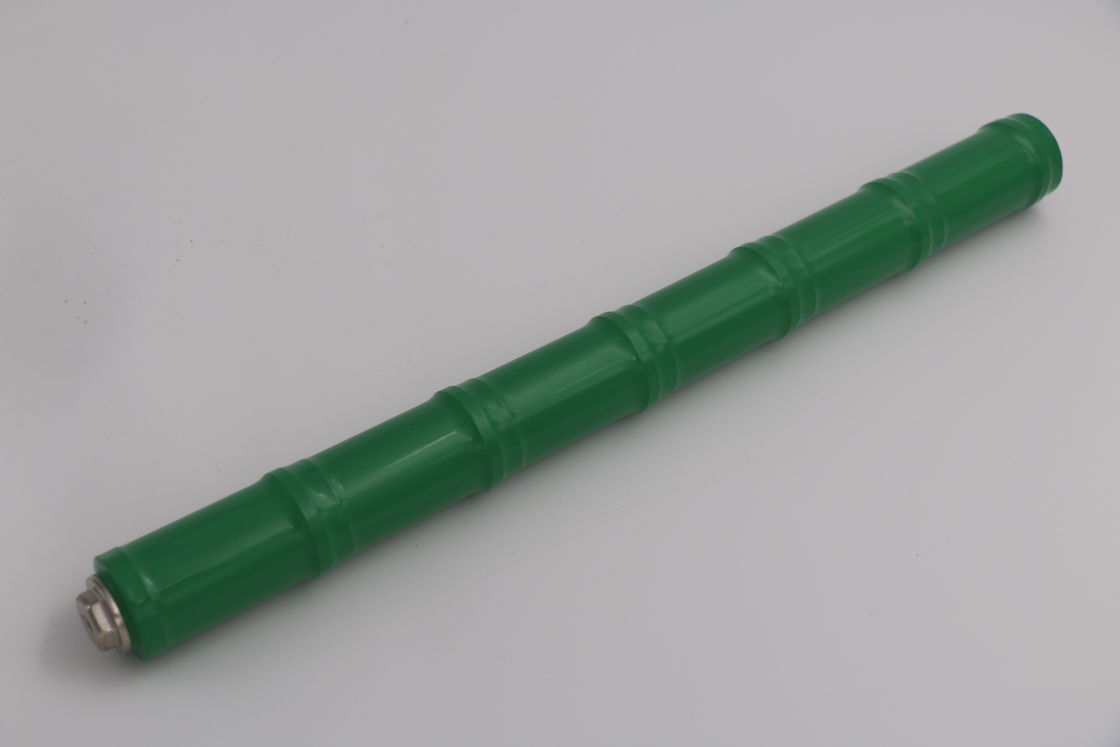

Battery Module
Description Original Replacement
Voltage 7.2V 7.2V
Capacity 6.5Ah 6.5Ah
Length 380mm 380mm
Net Weight 1040g

1040g



The whole battery pack consisted by 20 set of above modules

Cautions of Battery Pack Transportation and Storage

  1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
  2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
  3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

  1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  2. Interval: 30 minutes
  3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
  4. Interval: 1hours
  5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  6. Interval: 30 minutes
  7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

  1. Please operate according to assembly manual during the installation of Prius battery pack.
  2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
  3. Don’t twist and bend battery modules and accessories when assembling battery pack.
  4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
  5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.

Use Cautions of battery pack

  1. Ensure the normal operation of car management system during the use process, and forbid over- charge and over-discharge to battery.
  2. As storage battery is charged by gasoline engine, so external power supply charge is not needed. However, if the vehicle parks for a long time, the electricity of high power storage battery will run out. Therefore, be sure to drive the car for at least 30minutes or 16Km every several months.
  3. If there is leaked liquid, don’t touch the spilled liquid, because this may be the alkaline electrolyte that hybrid battery leaks. If skin and eyes contact to this liquid, please flush with plenty of water at once, or if possible, wash with boric acid solution and see the doctor at once.
