Home ProductsHonda Civic Hybrid Battery

2002 Honda Civic Car Battery 6500mAh 144V 7.2 Volt Every Cell NIMH Material

I'm Online Chat Now

2002 Honda Civic Car Battery 6500mAh 144V 7.2 Volt Every Cell NIMH Material

China 2002 Honda Civic Car Battery 6500mAh 144V 7.2 Volt  Every Cell NIMH Material supplier
2002 Honda Civic Car Battery 6500mAh 144V 7.2 Volt  Every Cell NIMH Material supplier 2002 Honda Civic Car Battery 6500mAh 144V 7.2 Volt  Every Cell NIMH Material supplier

Large Image :  2002 Honda Civic Car Battery 6500mAh 144V 7.2 Volt Every Cell NIMH Material

Product Details:

Place of Origin: China
Brand Name: Hyno
Certification: ISO/TS16949:2009, ISO9001:2008
Model Number: Hyno Civic 144

Payment & Shipping Terms:

Minimum Order Quantity: 1 pack
Price: To be discussed
Packaging Details: Standard packing, paper box, wooden box
Delivery Time: To be discussed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 packs/month
Contact Now
Detailed Product Description
Nominal Voltage: 7.2 Volt Material: NIMH Battery
Cycle Life: ≥1000cycles Place Of Origin: Mainland China
Size: Standard Color: Customized
High Light:

honda civic hybrid battery sticks

,

honda civic car battery replacement

Hyno Energy. Hybrid Battery Replacement For Honda Civic (1998-2005). 6500mAh 144V

Honda says to use the following procedure to disable the IMA system and isolate the high voltage battery: Turn the ignition OFF and disconnect the negative ground cable from the conventional 12 volt battery in the engine compartment. This will disable the IMA controller and prevent it from routing high voltage into the IMA system. Then remove the back seat, remove the small switch cover on the battery pack, and turn the switch OFF (down). Wait at least five minutes for the system's high voltage capacitors to discharge before working on the battery or other IMA high voltage components. If any work needs to be done on the hybrid battery junction board or control module, wear insulated gloves and use insulated tools.



Hunan Hi-soon Supply Chain Co., Ltd, is your best supplier of energy storage products with patent technology and guaranteed performance.

In addition to sustainable social change, we believe passionately in customer service, giving our employees proper training and knowledge, and making the highest quality products. We are 100% positive we are making the world a better place.



Technical Specification

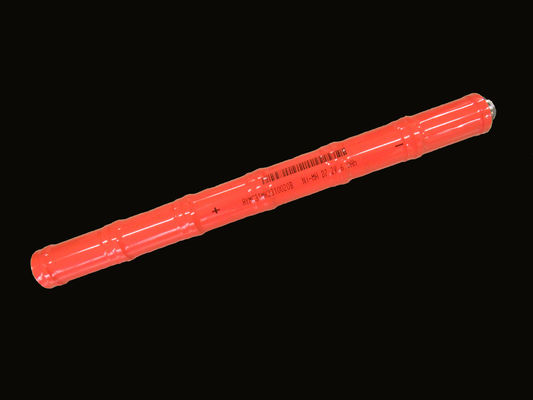

Battery Module
Description Original Replacement
Voltage 7.2V 7.2V
Capacity 6.5Ah 6.5Ah
Length 380mm 380mm
Net Weight 1040g

1040g



The whole battery pack consisted by 20 set of above modules





Item Specification
Dimension Length (mm) × Width (mm) × Height (mm) 290 x 294 x 110
Approximate Weight (kg) 30
Typical Capacity(mAh) 6500
Minimum Capacity (mAh) 6000
Nominal Voltage (V) 144
High Temperature Performance ( 55℃ 1C discharge rate) ≥90%
Low Temperature Performance (-20℃ 1C discharge rate) ≥85%
Charge Retention Performance (28days charge retention rate) ≥80%
Working Temperature Range -20℃ to +55℃
Cycle Life (C/2 charge, 1C discharge) ≥1000cycles






Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

  1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  2. Interval: 30 minutes
  3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
  4. Interval: 1hours
  5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
  6. Interval: 30 minutes
  7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

  1. Please operate according to assembly manual during the installation of Prius battery pack.
  2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
  3. Don’t twist and bend battery modules and accessories when assembling battery pack.
  4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
  5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.

Use Cautions of battery pack

  1. Ensure the normal operation of car management system during the use process, and forbid over- charge and over-discharge to battery.
  2. As storage battery is charged by gasoline engine, so external power supply charge is not needed. However, if the vehicle parks for a long time, the electricity of high power storage battery will run out. Therefore, be sure to drive the car for at least 30minutes or 16Km every several months.
  3. If there is leaked liquid, don’t touch the spilled liquid, because this may be the alkaline electrolyte that hybrid battery leaks. If skin and eyes contact to this liquid, please flush with plenty of water at once, or if possible, wash with boric acid solution and see the doctor at once.

Quality warranty

  1. The battery is guaranteed for 36 months or 50000km from the date leaving the factory, whichever comes first.
  2. If quality problem occurs within the warranty period, we are responsible for changing the damaged battery modules(Customers need to provide related battery modules information)
  3. The battery is not within the warranty range in the following situation:
  1. The battery damage caused by failing to in accordance with the provisions of the transport, storage, installation and using.
  2. The battery damage caused by an external force (such as traffic accidents, natural disasters) or by external short circuit during using process.
  3. The battery damage caused by the out of control of BMS.

Appendix

Hunan Hi-soon Supply Chain Co., Ltd reserves the right to change and revise Product specification without any advance notice.
